: Designing a Mountain Bike

By: g | January 16th, 2012 | No Comments » |

Done and dusted with Mountain Cycle, I was cleaning up my files when I came across a wad of drawing scans I did that defines the design process of the Mountain Cycle San Andreas 2.0; from the period of 2008-2011 I was involved with Mountain Cycle and in 2009 was tasked to design, manage and oversee (the Taiwan based owners chose to manage production and QC themselves) the first new line of frames the company had seen for some years.

The design process used to create such bikes, or products for that matter, is one that for many remains a mystery – it’s understood that somewhere someone does something and at the end a finished product is spat out of a factory but not much more. So rather than bury this away, never to be seen again, I thought some out there might find the whole process interesting, or at very least slightly entertaining.

Read the rest of this entry »

Tags:design,frame,mountain bike,mountaincycle

: Singlepivot Thoughts

By: g | January 8th, 2012 | No Comments » |

Yes, I am working on a new set of frames, not for Mountaincycle, that ship’s sailed, but for Lab-Gear:workshop.

As anyone who has done it will tell you, doing a FS frame is fraught with issues, not so much the actual making but more the suspension – and not because of what suspension but because of all the shit brandied about clueless marketing departments in order to convince people to by the ALL NEW frame, that’s really no better than last year’s ALL NEW frame.

Doing some looking around, I came across an interesting blog post:

“…The single pivot suspension is a compromise without a doubt. However, sometimes things that look great in theory don’t translate as well on trails and sometimes things that look crap in theory turns out to be a pleasant surprise.”

This pretty much sums up the reality from where I’ve seen it for the past 10 years. Sure, on paper so many new suspension designs seem and are great but when you get them on the trail, they all sort of balance out – especially when you consider how poorly the large majority of bikes are set up. Add to this that in today’s market, where shock units have finally matured to do what they should in the way they should, and that there is really no such thing as a bad bike anymore, then all the hype about the latest and greatest suspension design is pretty much that, hype. In many ways I see it as academic masturbation enjoyed mostly by magazine writers, marketing departments and those that talk more than they ride – I’ve had my arse handed to me by people on bikes ‘inferior’ to mine many times.

Can you imagine if the automotive world had as many different variations of suspension that the mountain bike world does?

So sure, you can call me an arse and that that’s fine by me. But if I’m wrong, then why do you still see people riding, say Mountain Cycle frames that are some 20 years old in design and yet they claim that the bikes are still great. Same with the FSR suspension etc. etc. In so many ways, it’s not the bike that’s the issue it’s more the owner’s own doing or worse, perception – if they think the bike’s a dog, then it is, regardless of what you might say or suggest and the only remedy is a newer, ‘better’ bike.

Read the whole rather interesting post here

Tags:mountain bike,singlepivot,suspension

: Old dog, new tricks?

By: g | September 20th, 2009 | No Comments » |

Back in 1989 or so, a chappy (now a Mountain Bike Hall of Fame inductee) by the name of Robert Reisinger designed a frame for his small newly formed company called Mountain Cycle. The frame was called the San Andreas and was the first true mountain bike full suspension frame. With a solid background in designing MX machines for the likes of Kawasaki, Reisinger applied a thinking to his design that up until then, and even now to some extent, was foreign to the bike world.

The basis for the design was simple enough, anyone who has had anything to do with motorcycles would understand it. The role of a frame, or chassis, is to connect the head tube to the rear wheel in the stiffest possible manner. On a bicycle you have to throw the bottom bracket into that, through which an unbalanced power delivery gets chucked at the frame. For a loooong time the only, and still the best, way to do that is with what is called a double triangle, aka, the everyday bike frame. This design is strength and simplicity at its best and allows for weights to be as low as possible and yet stay very strong. Through careful tube selection, a good builder can fine tune the frame for a light, smooth, silky ride.

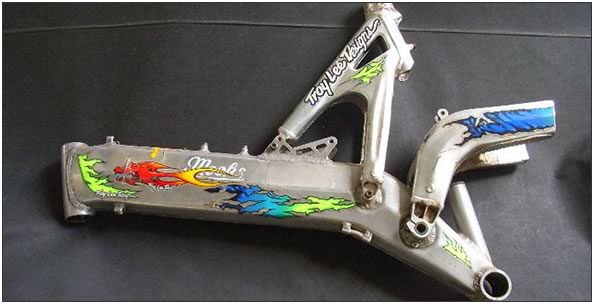

The wobble comes when suddenly the rear wheel is suspended and needs to move. Throwing suspension into the equation means that fine tuning the frame is far less important, as suspension now handles a lot of what was trying to be done with a rigid structure – take out fatigue inducing bumps and frequencies. Reisinger solved this problem by throwing away the tried and tested double triangle, and tubes for that matter, and connected the lot through a pressed monocoque frame. Doing this allowed for the frame to be engineered to be tortionally rigid, have a wide, thus stiff, single pivot point for the swing arm and connect the head tube to the bottom bracket in one ‘single’ piece. For the rear end and right out of the moto world, a monocoque style swing arm swept up and over the cranks, thus allowing for a short chainstay length, and attached the rear wheel to the frame the simplest and stiffest manner possible. As an upside, it also allowed a direct and very simple connection of the shock to the frame. Stripped, the San Andreas could be a frame for a small motorcycle.

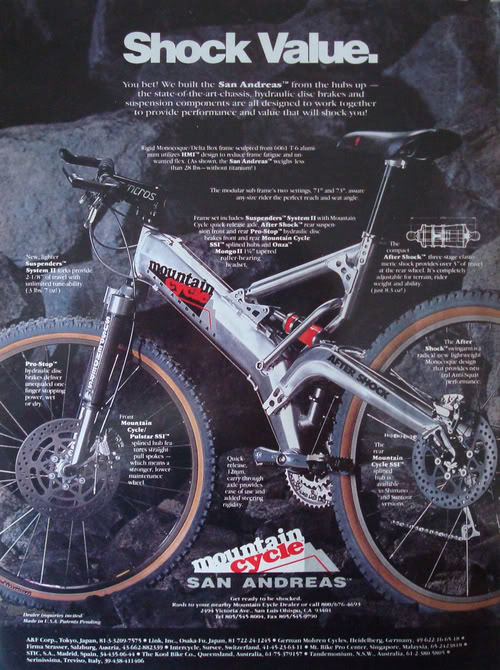

The end result of this was a frame that unlike any before it, and many after, was insanely stiff, strong, highly responsive and light. When you think that Reisinger then attached his own ‘Pro Stop’ disc brakes (with floating rotor) and upside down forks, you can see that even now, let alone 1991 when he debut the frame at Interbike, the Mountain Cycle San Andreas really was a piece of mountain biking design brilliance.

Today, the San Andreas still manages to turn heads in amongst the river of designs that it inspired, yet none have endured in the way that it has, 20 years on. If it were a car or a motorcycle, it would be considered a classic and while one will find the bike in the Museum of Contemporary Art in San Francisco, not many realise that there are people out there who either are looking for or are still running San Andreas frames in various incarnations; it’s rare to find a rider who had one and moved it on not later regret the decision. The bike has a mystic appeal and once you get used to its personality, you won’t want to part with it.

Personally I have had three San Andreas’ over the years. In 1993 I bought my first, which had the 2″ travel elastomer rear shock and 1 1/4″ headset. It was one of the first of the production bikes to come out of the California based Mountain Cycle. I’ll never forget my first ride on it, equipped with canti brakes and down steep fire trails that I knew so well on my steel GT. The bike picked up so much speed and was so direct in its response that, cutting the lines I took with the GT only got me into increasingly larger amounts of trouble until I had to stop, shaking. Welcome to the brave new world. I rode that bike over everything, from fire trails to steep goat track climbs up the sides of mountains, to me it defined what a mountain bike should be.

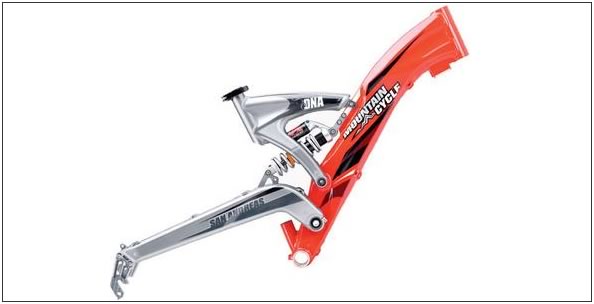

San Andreas ‘DNA’. Designed by Kenisis, it had (has) it’s issues and did the original no favours…

In ’96 I let the frame go and moved to all sorts of other bikes until, in ’05, I bought another after the custom bike I had waited months for to arrive turned out to be a total dud and was promptly sent back. The second San Andreas was from the ‘new’ Mountain Cycle, owned by Kinesis and I bought it just as Mountain Cycle was closing its doors. The ‘Classic’, as it was then being called, had a few refinements but by in large it was the same frame as my ’93 model. More travel, which yielded a skyscraper of a bottom bracket and with the VPS shock/head angle adjustment system, this was what ended up being the final production frame. As a quick side note, Kinesis also made a new San Andreas it called the ‘DNA’… which ended up being a marketing disaster as it was a XC and light AM design being pushed to Free Ride and DH. Net result? The DNA broke…. lots. Anyway, I threw a Rholoff and a Pushed Fox shock on my ‘Classic’ and it once again became the ultimate trail bike – simple and almost maintenance free. Several years later though it was stolen from my garage and yes, I was truly pissed off as Mountain Cycle had since vanished from the scene and after nearly 20 years, the San Andreas was no longer in production.

In late ’07 I managed by sheer fluke to find an old 2000 San Andreas front end at local legend repair shop [Gripsport.com.au] and had mated it to the spare ’03 rear end I had laying around (don’t ask); the rear end from the old frame was snapped clean in half. The chop job was perfect though and one would never know, unless they were well versed in the various incarnations of the frame. The older frame lacked the VPS system, which to me was a good thing as Kinisis did a bang-up job in crap engineering, which saw many of the machined VPS blocks peel off the frame along with the seat towers. Mine did. Fifteen years on I was once again back on board what I still consider one of the best MTB frames ever made.

The question though is ‘does the old school set up cope with the added travel and new school kit hanging from it?’ In Robert Reisinger’s words:

“… the original SA was designed with 2″ travel front and rear, but as travel grew so did the acceptable BB heights over the years and the SA’s original frame was modified to provide more travel with a higher BB too. However, as it got higher, it became more of a design issue that we addressed in different ways over the years, however a new re-design of the frame was always on the books to do but never found the time. That being said, as components changed too, with smaller chain rings, it made the problems of performance even worse, so we started to incorporate the changes into the new frames.

The SA, in my opinion, needs a re-design… “

g

End Pt 1

Note:

It should be known that G does work for Mountain Cycle in the role of design director (his blog: mag100.com). That said, the above article reflects what has been a long time relationship with the San Andreas and indeed, the current version was assembled prior to signing on with Mountain Cycle. G’s opinion, as well as that of Mountain Cycle, is that the San Andreas can teach us all that design, when done well, does not age.
